Solid Shutters

Solid Shutters

Solid lathes are perfect for providing full protection to the front of your building and minimising damage. Exceptional strength and cost effective, solid roller shutters including electric roller shutters London are reliable and convenient for all commercial and private properties.

At Shopfronts Shutters Ltd, we install and supply premium quality Roller Shutters. Our Solid roller shutters are reliable and convenient for all commercial and private properties where blanket coverage after working hours is required. We provide the most durable and economic Roller Shutters that are built to resist the toughest conditions. Constructed from high quality material, our Roller Shutters provide strong weatherproofing, whilst maintaining the temperature inside. Our solid roller shutters are suitable for all industrial or commercial settings as they offer complete security and privacy. Our electric roller shutter service is used for many purposes but the main objective is to add a layer of security to prevent break-ins.

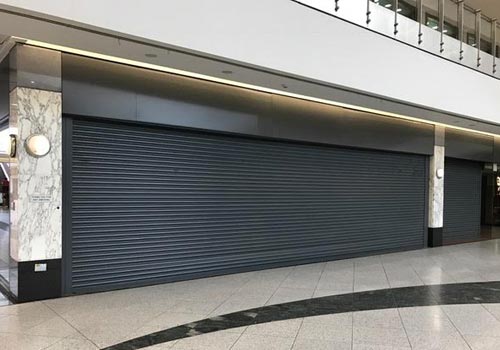

Shopfronts and Shutters London

Our experienced roller shutter installers are highly professional and well trained. They will make sure the shutters are installed with absolute precision to ensure smooth operation.

Solid Shutter

Electric/Manual Solid Roller Shutters

Our Electric Roller Shutters (Solid) come with the following features:



  • Galvanised steel roller shutter
  • 75mm solid 22swg profiled lath. Can be upgraded to 20swg or 18swg for added thickness if required.
  • ‘T’ or ‘ L’ profile bottom rail
  • 50 mm x 50 mm steel box section (both sides) used to allow for motor unit and safety brake.

    75 mm x 50 mm box section will be used for shutters over 160 kg in weight (5000 mm x 3200 mm approximately).



  • 50 mm x 75/100 mm angles, where required.

  • Standard guide rails – 65/75/100 mm x 32 mm x 3 mm
  •  Tubular barrel assembly.  Spring assisted barrel assemble for manual shutter
  • Single Phase 240v tubular motor with emergency override system (Inc crank handle)
  • Safety brake (Doorways only)
  • Galvanised steel pressed canopy available based on size
  • Mill finish as standard with Hammerite grey powder coat to steelwork frame only
  • Powder coating available in 200+ standard RAL colours

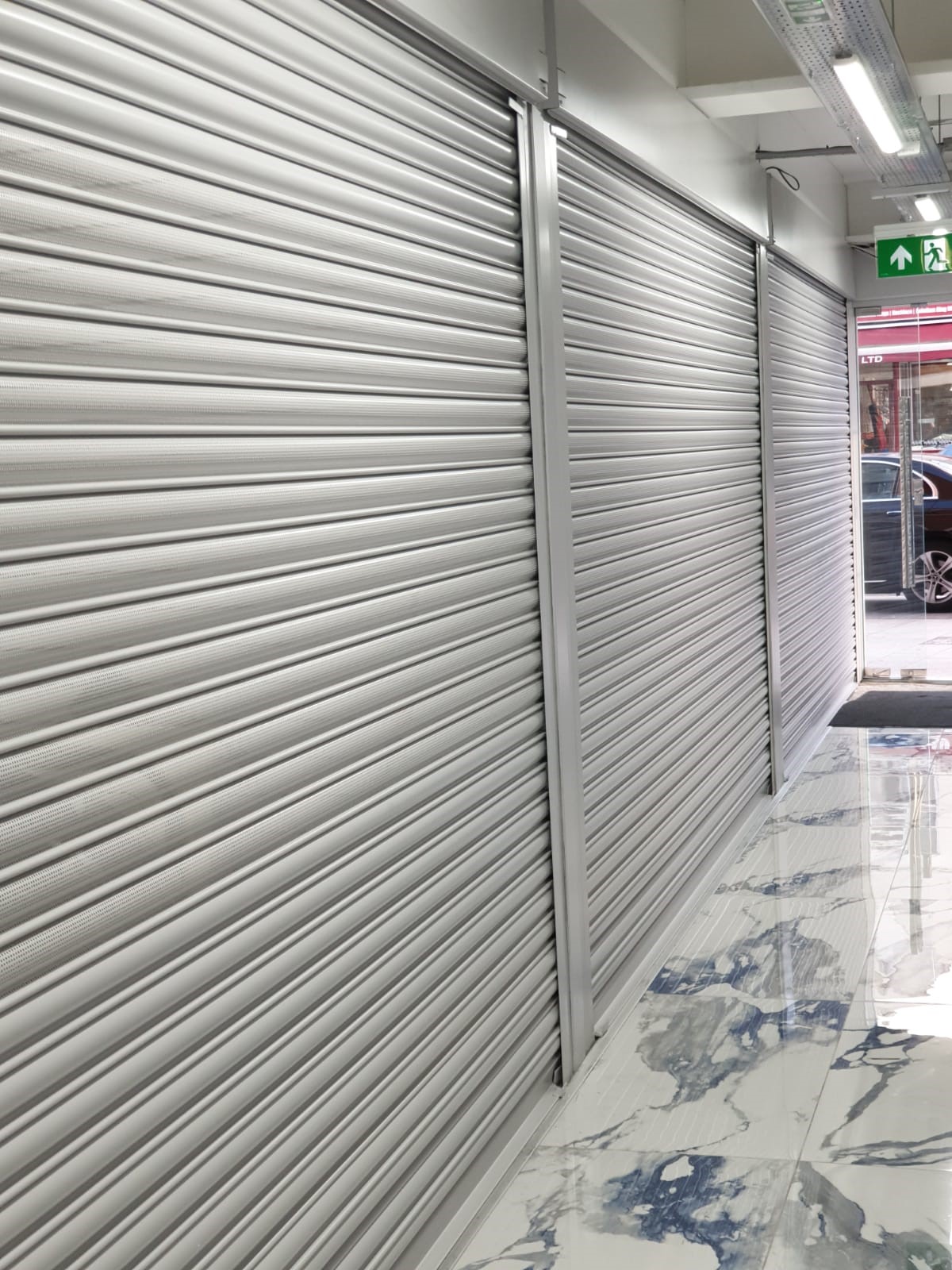

Solid Shutters London
Electric Roller Shutters London

Operational Specification

Manual Shutter – Spring Loaded

A counter balanced spring ensures controlled raising and lowering with a bullet lock in-built at the bottom of the shutter for security.

Single Phase Electric

A tubular motor within the barrel assembly with limit switches and thermal cut out to prevent overheating. Draw 240 volts and 0.5 – 2.5 amps dependant upon the shutter size. Provision of a 13 amp fused spur is required for installation.

Three Phase Electric

Design of this model will alter for three phase operation. Electrical requirements are dependant on usage, further details on request.

Override

A manual override is included to operate the shutter in the event of a power failure. This is usually operable from one side only using a crank handle.

Hand Chain Operation for Industrial Shutters

A counter balanced helical spring controlled via hand chain and chain lock to secure.

Control

Standard security key switch or rocker switch. Other controls are available on request.

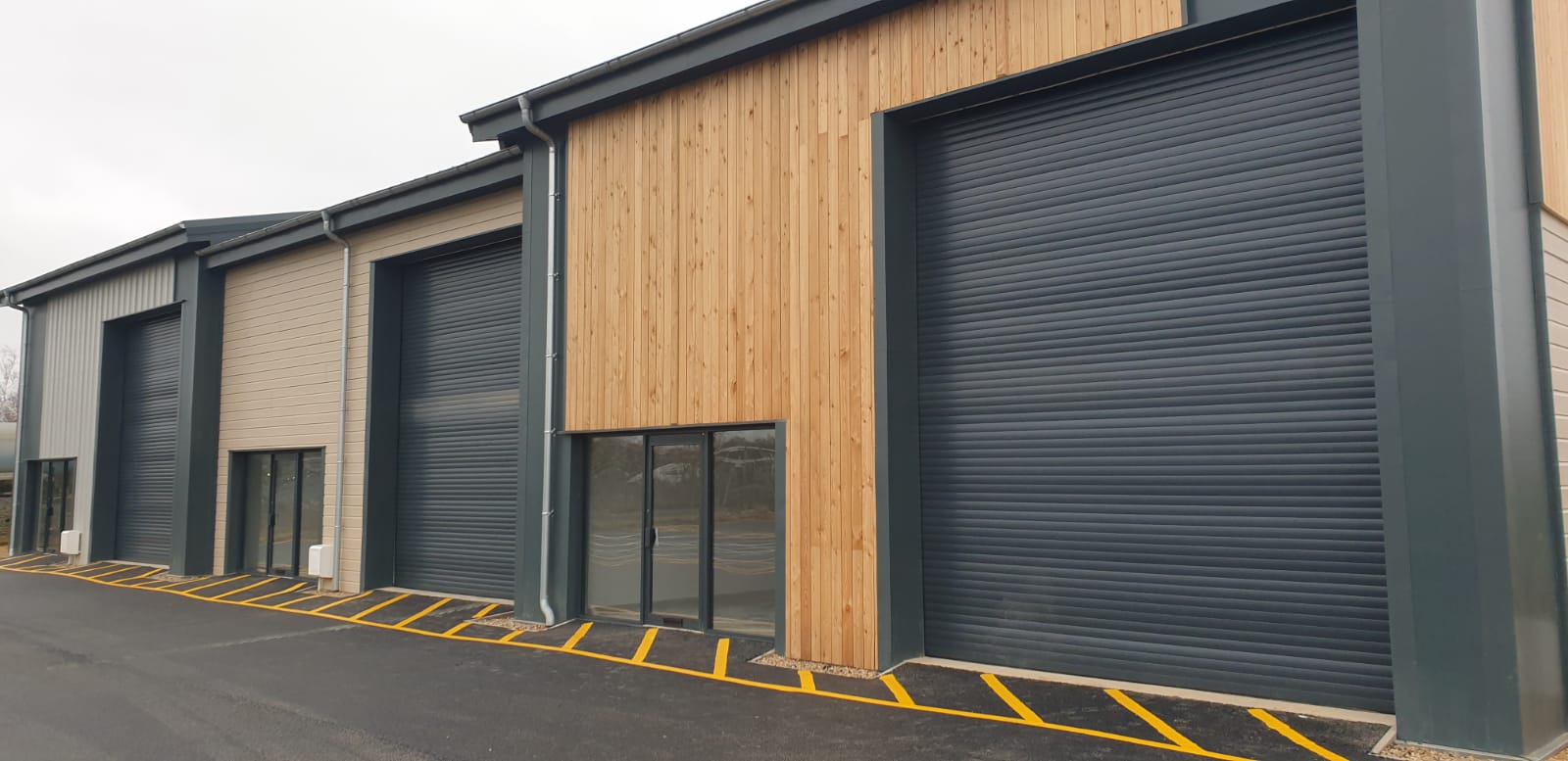

shopfronts london

All Solid shutters can be powder coated in any standard RAL colour.

We take pride in delivering an outstanding customer
service and will not be beaten on our quality,
reliability or competitive prices.
