Rolling Grille Shutter

Rolling Grille Shutter

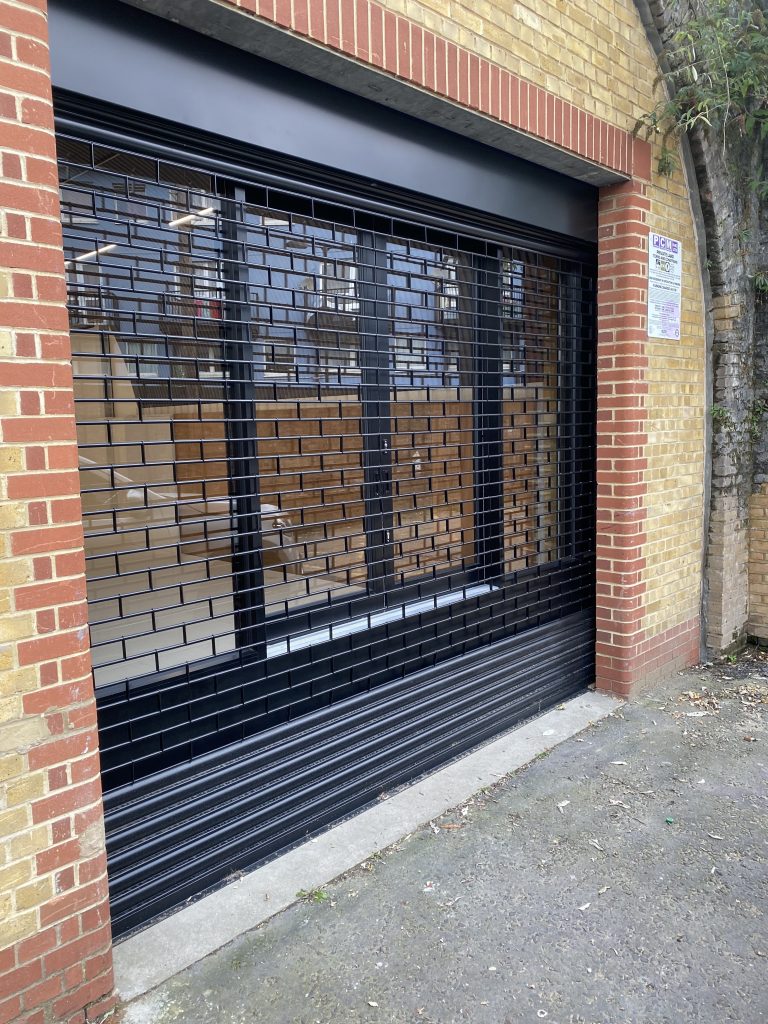

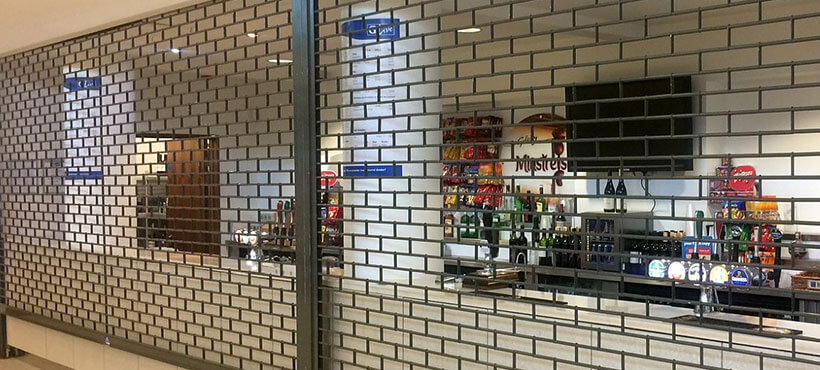

This rolling grille is built in a brick formation using horizontal aluminium tubes and vertical links, which are ideal for shopfronts, counters, car Parks or areas requiring high security whilst still allowing good air flow and delivers maximum visibility. All rolling grille shutters can be powder coated in any RAL colour.

Quality Shopfronts Nationwide
Rolling-Grill-Shutter
Roller Grille Specification

Tube and link roller grille in brick-bond or inline pattern

Construction:
  • Manufactured from aluminium tubes and links on aluminium rods;
    Tube size 111mm x 13mm;
    Link size 86mm x 16mm x 3mm;
    Steel guides 64mm x 32mm;
    ‘T’ or ‘ L’ profile bottom rail
Operation:

Manual push up/pull down operation or electric operation by internal tubular motor with manual override facility. Safety brake fitted when required.

Locking Options:

Bottom rail central key lock, guide pin locks, or ground padlocking system.
Electrically operated grilles are generally self-locking. For additional security Shopfronts Shutters recommends guide pin locks or a ground padlocking unit combined with a motor isolator box.

Pattern Options:

Available in two patterns:

Brick bond pattern (aperture size 225mmW x 65mmH)

Inline pattern (aperture size 110mmW x 65mmH)

Finish:

Powder Coated – Over 200 RAL colours to choose from

Box Size:

Clear opening height (to underside of box):

2400mm, box size 305mm square;

3000mm, box size 355mm square;

5000mm, box size 385mm square.

Maximum Sizes:

5000mmW x 5000mmH

7000mmW x 5000mmH

Gratte-Tube-Link
shopfronts and shutters London

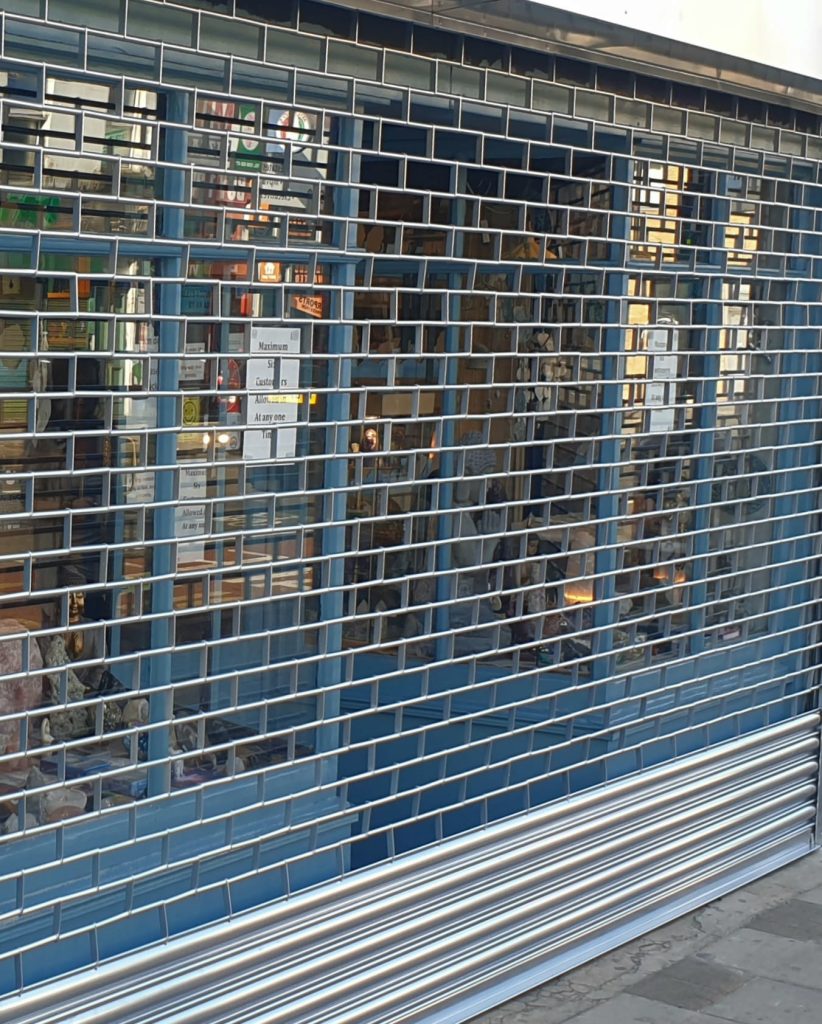

Electric Rolling Grille Shutters

Our Electric Rolling Grille Shutters come with the following features:



  • Galvanised steel roller shutter
  • 75mm solid 22g profiled lath
  • ‘T’ or ‘ L’ profile bottom rail
  • 50 mm x 50 mm steel box section (both sides) used to allow for motor unit and safety brake.

    75 mm x 50 mm box section will be used for shutters over 160 kg in weight (5000 mm x 3200 mm approximately).

  • 50 mm x 75/100 mm angles, where required.

  • Standard guide rails – 65/75/100 mm x 32 mm x 3 mm
  •  Tubular barrel assembly.  Spring assisted barrel assemble for manual shutter
  • 240v tubular motor with emergency override system (Inc crank handle)
  • Safety brake (Doorways only)
  • Galvanised steel pressed canopy (external doors only)
  • Mill finish as standard with Hammerite grey powder coat to steelwork frame only
  • Powder coating available in 200+ standard RAL colours

All Rolling Grille Shutters can be powder coated in any standard RAL colour.
